Both Explosion and Non-Explosion Proof Available!

Features:

  • HIGH accuracy speed regulation or speed indication
  • Single or double shaft extensions
  • Operational in either rotation or on reversing device
  • No vent openings (not airtight) to prevent free exchange of air
  • Exceptional linear voltage outputs in direct proportion to speed
  • eXcellon product built based on GE originally created drawings and specifications
  • Some are severe duty enclosure
  • NEMA cface or foot mount
  • Premium SKF bearings
  • eXcellon nameplate will reflect General Electric model number!

Applications:

  • Steel
  • Paper
  • Textile drives
  • Other industrial machinery utilizing adjustable speed drives

Available models (but not limited to):

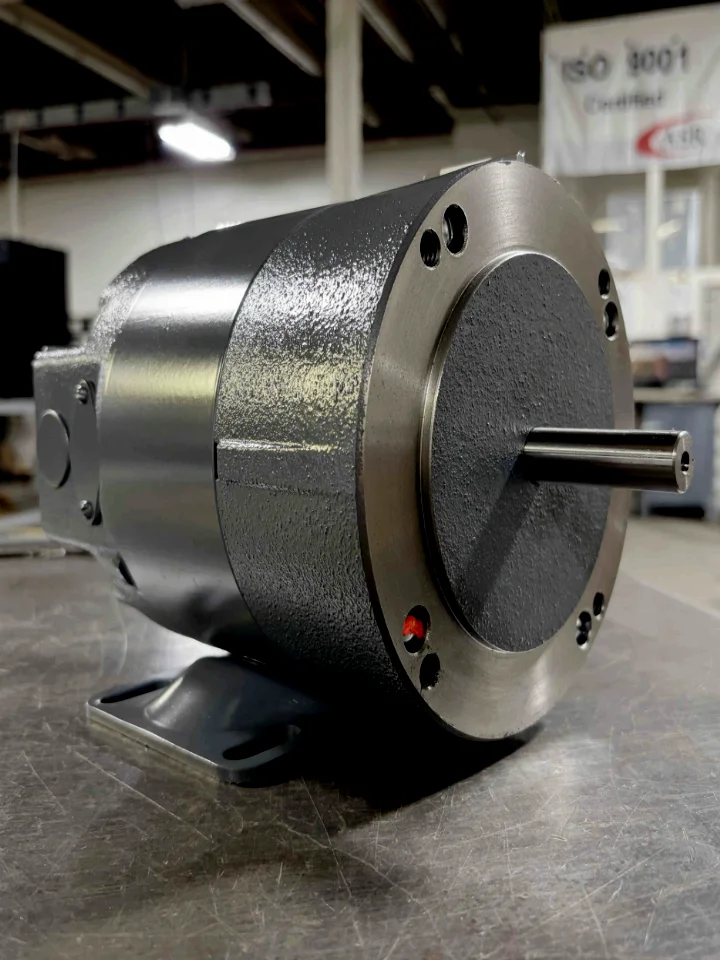

DC Tachometer Generators - Totally Enclosed Non Ventilated

RPM Volts/ 1000 rpm GE frame NEMA Frame Base Former GE Catalog No. Model No. List Price (USD)* Wgt. C’ Dim. Notes
100-3600 100 18 56 Bolt-on D139 5BC46AB1581 $5,700.23 36 14.5 See note
100-3600 100 18 56 Bolt-on D128 5BC46AB1571 $5,772.38 36 12.6
100-2750 100 18 56 Bolt-on D136 5BC42AB1834 $3,848.26 25 10.3
100-2750 100 18 56 Bolt-on D282 5BC42AB2109 $4,462.91 29 11.5
100-1800 200 18 56 Bolt-on D138 5BC46AB1572 $5,828.50 29 12.6
100-1800 200 18 56 Bolt-on D140 5BC46AB1582 $5,630.75 36 14.5 See note
100-1375 200 18 56 Bolt-on D137 5BC42AB1830 $3,768.08 26 10.3
100-5000 50 18 56 Bolt-on D127 5BC46AB1570 $5,636.09 36 12.6
100-5000 50 18 56 Bolt-on D126 5BC42AB1729 $3,888.34 26 10.3
100-2750 100 18 56C Bolt-on D143 5BC42AB2177 $4,233.08 30 12.6 See note
100-3600 100 18 56C NB D131 5BC46AB1591 $5,251.27 39 12.6
100-3600 100 18 56C Bolt-on D132 5BC46AB2014 $6,066.35 41 14.5 See note
100-2750 100 18 56C NB D142 5BC42AB1882 $3,981.88 29 10.3
100-1800 200 18 56C Bolt-on D133 5BC46AB2082 $6,306.86 41 14.5 See note
100-5000 50 18 56C NB D141 5BC42AB1780 $4,657.99 29 10.3
100-5000 50 18 56C Bolt-on D144 5BC46AB2291 $5,376.87 41 14.5 See note
100-5000 50 18 56C Bolt-on D149 5BC42AB2195 $3,928.43 30 12.6 See note
100-5000 50 18 56C NB D130 5BC46AB1590 $5,251.27 39 12.6

*Please contact us at +1-855-503-9159 or contact@excellonmotors.com for price and availability

Note: Double shaft extension (1 7/8” x 5/8” diameter).

FLG = Flange mounted      WB = Welded base     NB = No base

Other examples (but not limited to):

  • 5BC42AB2130
  • 5BC42AB2131
  • 5BC44AB593
  • 5BC42AB2395
  • 5BC46AB1901
  • 5BC46AB2158
  • 5BC46AB2247
  • 5BC46AB2268
  • 5BC46AB2327
  • 5BC46AB2343
  • 5BC46AB2353
  • 5BC46AB2326
  • D137
  • D136
  • D142
  • D282
  • D149
  • D127
  • D128
  • D138
  • D139
  • D140
  • D131
  • D132
  • D133
  • 897A590----017     897A590017
  • 897A590----024     897A590024
  • 897A590----032     897A590032
  • 897A590----052     897A590052
  • 897A590----001     897A590001
  • 897A591----002     897A591002
  • 897A591----029     897A591029
  • 897A591----034     897A591034
  • 897A591----041     897A591041
  • 897A591----068     897A591068
  • 897A594----002     897A594002
  • 897A594----001     897A594001
  • 225A9641P003
  • 225A9643P001

DC Tachometer Generators - Explosion Proof - Class 1, Group D; Class II, Groups E, F, G

Totally Enclosed Fan Cooled

RPM Volts/ 1000 rpm GE frame NEMA Frame Base Former GE Catalog No. Model No. List Price (USD)* Wgt. C’ Dim.
100-2500 100 18 56C FLG D268 5BC42AE1001 $5,585.32 38 11.9
100-2500 100 18 56 WB D256 5BC42AE1002 $5,611.32 32 11.9
100-5000 50 18 56 WB D255 5BC42AE1003 $5,611.32 32 11.9
100-5000 50 18 56C FLG D267 5BC42AE1008 $5,585.32 38 11.9

*Please contact us at +1-855-503-9159 or contact@excellonmotors.com for price and availability

FLG = Flange mounted      WB = Welded base     NB = No base

Other examples (but not limited to):

   + 5BC42AE1019
